实验室台柜
环氧树脂板耐腐蚀性能
|
无机酸 |
黑色 |
铂金灰 |
珍珠白 |
丛林绿 |
太平洋蓝 |
|
铬酸 (CrO3) 40% |
2 |
2 |
2 |
1 |
3 |
|
盐酸 (HCl) 10% |
1 |
1 |
1 |
1 |
1 |
|
盐酸 (HCl) 37% |
1 |
1 |
1 |
1 |
1 |
|
硝酸 (HNO3) 40% |
1 |
1 |
1 |
1 |
1 |
|
硝酸 (HNO3) 70% |
2 |
2 |
2 |
2 |
2 |
|
硫酸 (H2SO4) 40% |
1 |
1 |
1 |
1 |
1 |
|
硫酸 (H2SO4) 96% |
5 |
5 |
5 |
5 |
5 |
|
有机酸 |
|||||
|
乙酸 (CH3CO2H) -5% |
2 |
2 |
2 |
1 |
1 |
|
乙酸(CH3CO2H) –冰醋酸 |
2 |
1 |
1 |
1 |
1 |
|
柠檬酸 (C6H8O7) -1% |
1 |
1 |
1 |
1 |
1 |
|
油酸 (C18H34O2) |
1 |
1 |
1 |
1 |
1 |
|
石炭酸(C6H5OH) -5% |
1 |
1 |
1 |
1 |
1 |
|
碱性溶剂 |
|||||
|
氢氧化铵 (NH4OH) -10% |
1 |
1 |
1 |
1 |
1 |
|
氢氧化钾 (KOH) -15% |
1 |
1 |
1 |
1 |
1 |
|
碳酸钠 (Na2CO3) -20% |
1 |
1 |
1 |
1 |
1 |
|
氢氧化钠 (NaOH) -60% |
1 |
1 |
2 |
1 |
2 |
|
次氯酸钠 (NaOCl) -4% |
1 |
1 |
1 |
1 |
1 |
|
有机化合物 |
|||||
|
苯胺(C6H5NH2) |
2 |
1 |
1 |
2 |
1 |
|
矿物油 |
1 |
1 |
1 |
1 |
1 |
|
橄榄油 |
1 |
1 |
1 |
1 |
1 |
|
肥皂 -1% |
1 |
1 |
1 |
1 |
1 |
|
变压器油 |
1 |
1 |
1 |
1 |
1 |
|
松节油 |
2 |
1 |
1 |
1 |
2 |
| 有机溶剂 | |||||
| 丙酮 (CH3COCH3) |
3
|
2
|
2
|
2
|
2
|
| 苯 (C6H6) |
2
|
2
|
2
|
2
|
2
|
| 四氯化碳 (CCl4) |
1
|
1
|
1
|
1
|
1
|
| 二乙基(CH3CH2OCH2CH3) |
1
|
1
|
1
|
1
|
1
|
| DMF(HCON[CH3]2) |
1
|
1
|
1
|
1
|
1
|
| 乙酸乙酯 (CH3CO2C2H5) |
2
|
2
|
2
|
2
|
2
|
| 乙醇 (CH3CH2OH) -95% |
1
|
1
|
1
|
2
|
1
|
| 二氯化乙(ClCH2CH2Cl) |
1
|
1
|
1
|
1
|
1
|
| 庚烷(CH3[CH2]5CH3) |
1
|
1
|
1
|
1
|
1
|
| 异辛烷 (C8H18) |
1
|
1
|
1
|
1
|
1
|
| 煤油 |
1
|
1
|
2
|
1
|
1
|
| 甲醇(CH3OH) |
1
|
1
|
1
|
1
|
1
|
测试方法：
方法A： 针对挥发性化学试剂。采用预浸过化学试剂的棉球，放置于容积为1盎司的瓶中（10mm x 75mm的试管或类似的容器）。 该瓶倒置于所测试的材料表面持续24小时。测试温度为：23o +/- 2oC (73o +/- 4oF)。这种方法适用于有机试剂。
Method A – for volatile chemicals. A cotton ball, saturated with the test chemical, was placed in a one ounce bottle (10mm x 75mm test tube or similar container). The container was inverted on the test material surface for a period of 24 hours. Temperature of test: 23o +/- 2oC (73o +/- 4oF). This method was used for the organic solvents.
方法 B： 针对不挥发的化学试剂。将5滴（1/4cc）化学试剂置于所测试材料的表面。然后用25mm的表面皿覆盖于化学试剂上持续24小时。测试温度为：23o +/- 2oC (73o +/- 4oF)。这种方法适用于所列示的除溶剂外的其他试剂。
Method B – for non-volatile chemicals. Five drops (1/4cc) of the test chemical were placed on the test material surface. The chemical was covered with a watch glass (25mm) for a period of 24 hours. Temperature of test: 23o +/- 2oC (73o +/- 4oF). This method was used for all chemicals listed below other than the solvents.
评估：在持续放置24小时后，测试的区域先用水清洗，再用清洁剂清洗，然后使用异丙醇清洗。最后用蒸馏水漂洗，用布擦干。
Evaluation – After 24 hour exposure, exposed areas were washed with water , then a detergent solution and finally with isopropyl alcohol, rinsed with distilled water and dried with a cloth.
测试评分
1 – 无影响：在材料表面无可察觉的改变。
2 – 优 秀： 在颜色与光泽方面有轻微可察觉的改变，但对材料表面的功能与寿命无影响。
3 – 较 好： 颜色与光泽有清晰可辨的改变，但对材料表面的功能与寿命无重要影响。
4 – 一 般： 由于变色或腐蚀，外观有不雅改变。如果延长测试时间，有可能造成功能的损毁。
5 – 失 败： 表面出现斑痕、坑凹或侵蚀，明显且重要的材料损毁。
1 – No Effect: No detectable change in the material surface.
2 – Excellent: Slight detectable change in color or gloss but no change in function or life of the surface.
3 – Good: A clearly discernable change in color or gloss but no significant impairment of surface life or function.
4 – Fair: Objectionable change in appearance due to discoloration or etch, possibly resulting in deterioration of function over an extended period of time.
5 – Failure: Pitting, cratering, or erosion of the surface. Obvious and significant deterioration.

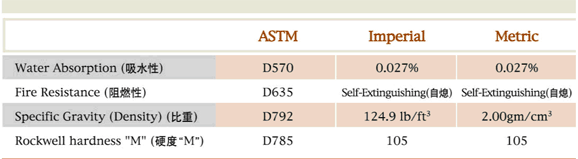

物理性能测试：
|
物理性能
|
测试标准
|
英制单位
|
国际单位
|
|
抗压强度
|
ASTMD695
|
38,500 psi
|
265 MPa
|
|
抗弯强度
|
ASTMD790
|
17,000 psi
|
117 MPa
|
|
抗拉强度
|
ASTMD638
|
10,500 psi
|
72 MPa
|
|
密度
|
ASTMD792
|
125.5 Ibs/ft3
|
2.01 g/cm3
|
|
洛氏M硬度
|
ASTMD785
|
110
|
110
|
|
热变形温度
|
ASTMD648
|
334F
|
168C
|
|
热膨胀系数
|
ASTMD696
|
1.31*10-5 in./ F
|
2.35*10-5 mm/C
|
|
抗火性
|
ASTMD635
|
不可燃
|
不可燃
|
|
吸水性
|
ASTMD570
|
0.008%
|
0.008%
|
抗高温性能测试
测试A：陶瓷坩埚。将置于所测试材料表面的陶瓷坩埚，加热至暗红色然后让其冷却，温度降至室温。
Test A: porcelain Crucible – A porcelain crucible was heated to a dull red color, placed on the test material, and allowed to cool to ambient temperature.
观测结果：无起泡，裂缝或任何表面变形。
Observation: No blisters, no cracks nor any surface deformations were observed on the work surface.
测试B：煤气喷灯。将一个3/8〞 的煤气喷灯调到稳定的火焰使其蓝色锥形内焰为1-1/2〞，然后，将煤气喷灯翻转，是火焰接触所测试的材料5分钟。
Test B: Bunsen Burner A 3/8〞Bunsen burner was adjusted to a quiet flame with a 1-1/2〞inner blue cone and then overturned on the test material, exposing material to the flame for 5 minutes.
观测结果：无起泡或裂缝。
Observation: No blisters nor cracks were detected on the exposed work surface.
